Disassembly and Docking Group



Make Dock and Target

Make dockable objects and interact with them in your scenes and projects.


Docking and target allows you to place moveable objects in a certain predefined manner upon interacting with them.
In object tree you will notice that the shape of the icon has changed to the Docking shape.
In object tree you will notice that the shape of the icon has changed to the target shape.

Remove Dock and Target

To remove the dock and a target:

  • From Interactions menu » Click Remove Dock and Target.
  • Select the object to remove dock and target.

The docking systems in Simlab Composer offers a great interaction method with components a design.
Creating VR dock and target video tutorials


Manage (Dis)Assembly Process:

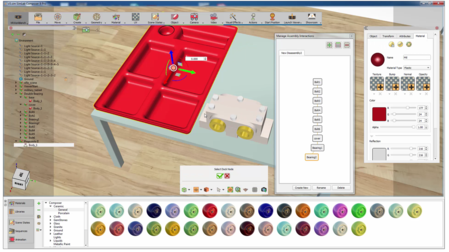

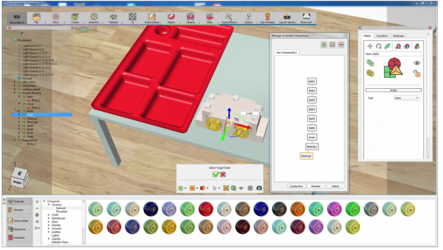

In the assembly management window you can graph and connect nodes based on the order you want them to be disassembled.





The assembly management interactions, settings:

  • Green Plus button: Adds the selected node (in the 3d scene) to the disassembly diagram, if a disassembly graph node is selected, it will become the parent of the newly added node.

  • Ladder button: Change parent of selected disassembly graph nodes, a graph node must be selected before clicking this button, the graph node selected afterwards will become the new parent - or - if a blank space is selected, the graph node will become independent (with no parent).

  • Red Minus button: removes a node from the graph.

  •  Create new: create a new disassembly diagram.

  • Rename: change the name of the disassembly diagram.

  • Delete: remove the disassembly.


In the tutorial video below, you can show how used disassembled group.
