Door/Cabinet Animation



Automatically creates animation for an object depending on its type. For scenes with mul

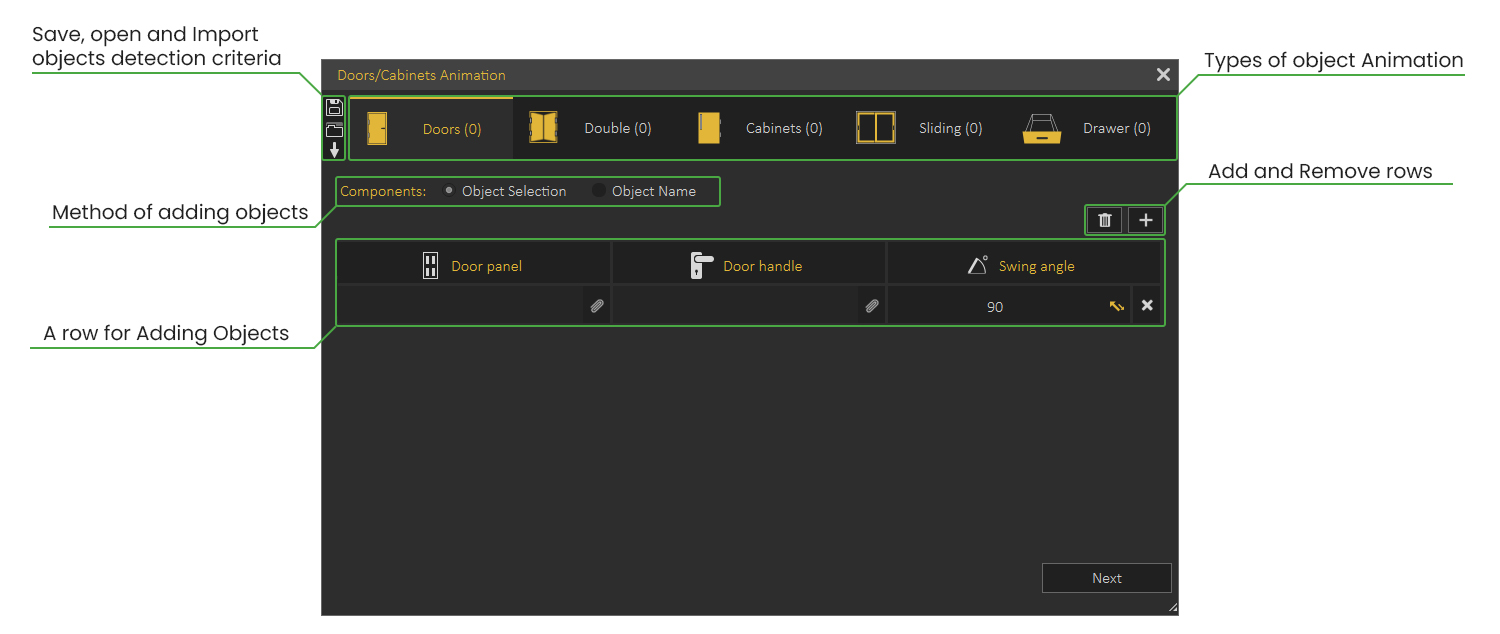

There are two main methods for defining which objects to animate:


Object Selection


With this method, the user will manually select the components in the scene to create an animation for.
This method is suitable for scenes with small number of objects.

Automatic animation for Doors / Cabinets  using Object Selection Method


Object Name

With this method, the user will type in the name of components, and SimLab Composer will automatically find them in the scene and list them.
This method is more suitable for scenes with large number of objects to animate.
Automatic animation for Doors / Cabinets  using Object Name Method

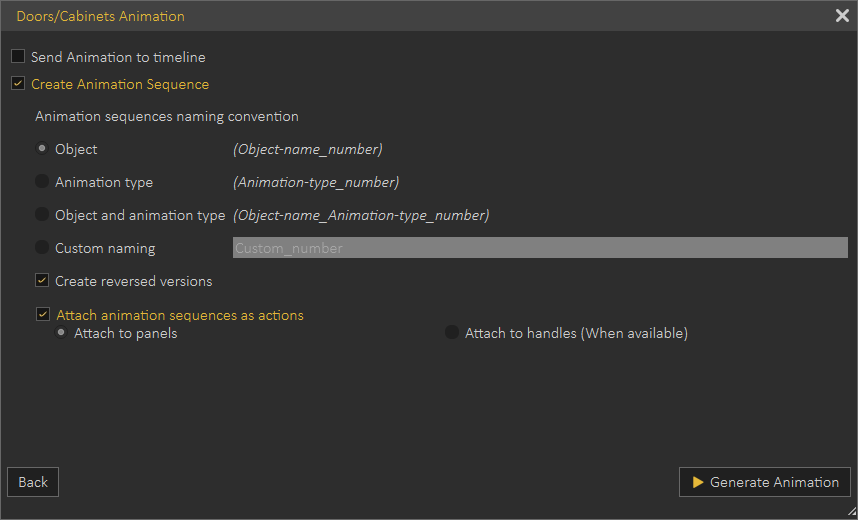

Doors and Cabinets Settings


1- Send animation to timeline

Enabling this option sends the created animation as keyframes to the timeline, this could be helpful when you intend to combine multiple animations or modify the animation further.

2-Create animation Sequences

This option will create separate animation sequence for each object, those sequences can then be used in 3D PDF or in VR.

3-Create Reversed Versions

Reversed version of an animation allows the object to go back to its original state, for example, if you have created an animation for a door opening, a reversed version of the door closing will be automatically created.

4-Attach animation Sequences as actions

With this option enabled, the scene is completely ready to be used in a 3D PDF or a VR experience, since all the objects would have their animation attached to them as actions.
