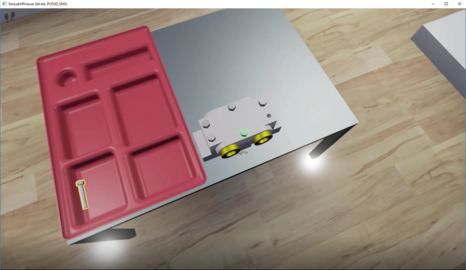

The green highlight object in an assembly refers to the current available part of the system that you can remove.
The yellow highlight indicates that the object can be grabbed.

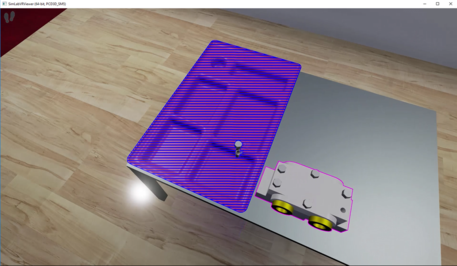

You will also notice a blue highlight on the assembly indicating that you can place the object in there.
Interacting with assemblies in the SimLab VR viewer is very simple, the colored outlines and highlights will guide you throughout the assembly and diss-assembly process with ease and without any confusion.

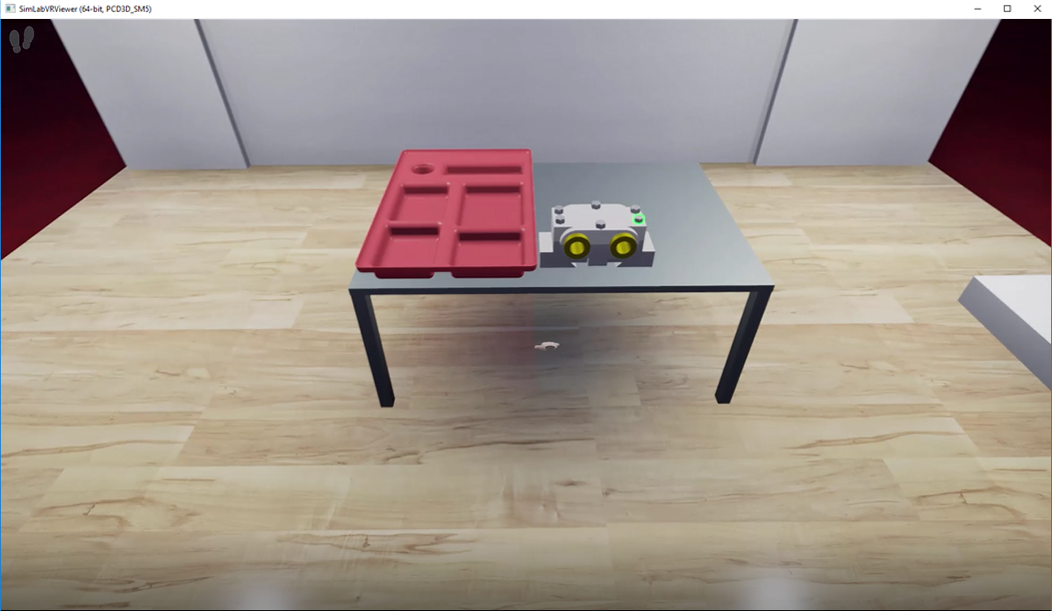

Press “H” on your keyboard to toggle the hand. The hand has a fixed position at the center of the view, but can be moved away or towards you using the mouse scroll.

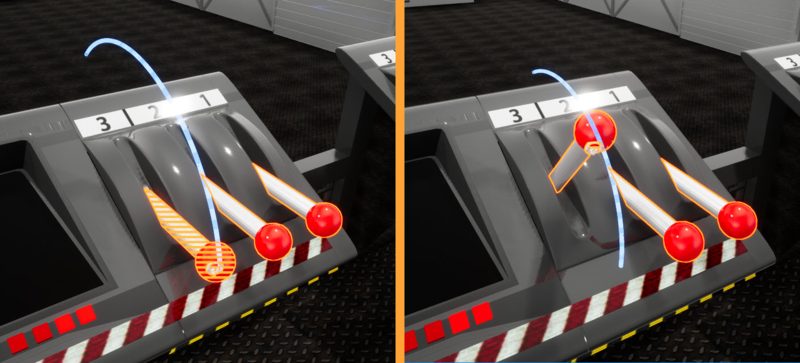

Grabbable sequence allow users to interaction with 3D objtects in VR Viewer by linked these objects with animation sequence, In he image below, create animation rotation for the control arm and saved it as sequence, then linked this sequence to arm object used grabbable sequence tool, the arm can be picked up and control them up and down in VR Viewer.
To make grabbable sequence for an object follow these steps:
1. In VR Workbench, from Interactions select Make Grabbable Sequence.

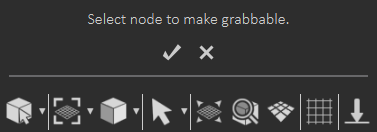

2. When The message below appear, select the object that want to make grabbable (create an Animation Sequence for it before) then click
Press “H” on your keyboard to toggle the hand. The hand has a fixed position at the center of the view, but can be moved away or towards you using the mouse scroll.
Preview videos to learn more about Grabbable Sequence.
