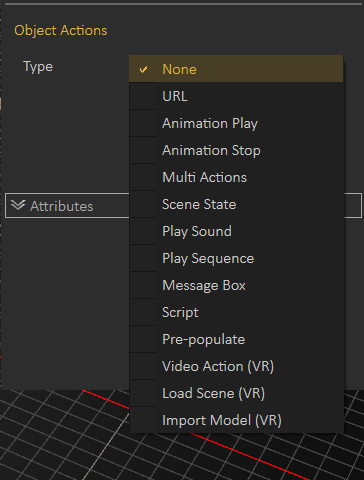

SimLab Composer supports adding predefined actions that can be executed upon clicking a 3D model, or Templates’ elements. Advanced users can write their own script to define new actions.
Action
Effect
URL
Links 3D geometry OR Template element with the entered web address, that will be opened On Click.
Animation Play
Plays scene animation upon clicking 3D geometry OR Template element.
Animation Stop
Stops playing scene animation upon clicking 3D geometry OR Template element.
Multi Actions
Plays a list of selected actions, in a selected sequence. Loop, Swing, Random or Run All upon clicking 3D geometry OR Template element.
Scene State
Executes a scene state upon clicking 3D geometry OR Template element. Scene states can be selected by Name or Index.
Play Sound
Utilizes and employs sound effects in your exported 3D PDF file; either by assigning them to a 3D object via SimLab Composer or to 2D elements of your templates via SimLab Template Designer.
Play Sequence
Utilizes and employs Animation Sequences in your exported 3D PDF file; either by assigning them to any 3D object via SimLab Composer or to 2D elements of your templates via SimLab Template Designer.
Message Box
Displays a message box upon clicking 3D geometry OR Template element. The user needs to enter the Message and its Title.
Script
Enables users to write their own script to be executed upon clicking 3D geometry OR Template element.
Pre-Populate
Video Action
Plays the selected video which can be created from Make Video function in Visual Effects menu in the VR Workbench
Load Scene
Runs another Composer Scene from the computer or online "URL link for the scene" in the VR Viewer.
Import Model
Imports a model into the scene during experience in the VR Viewer.
Multi Actions Option:

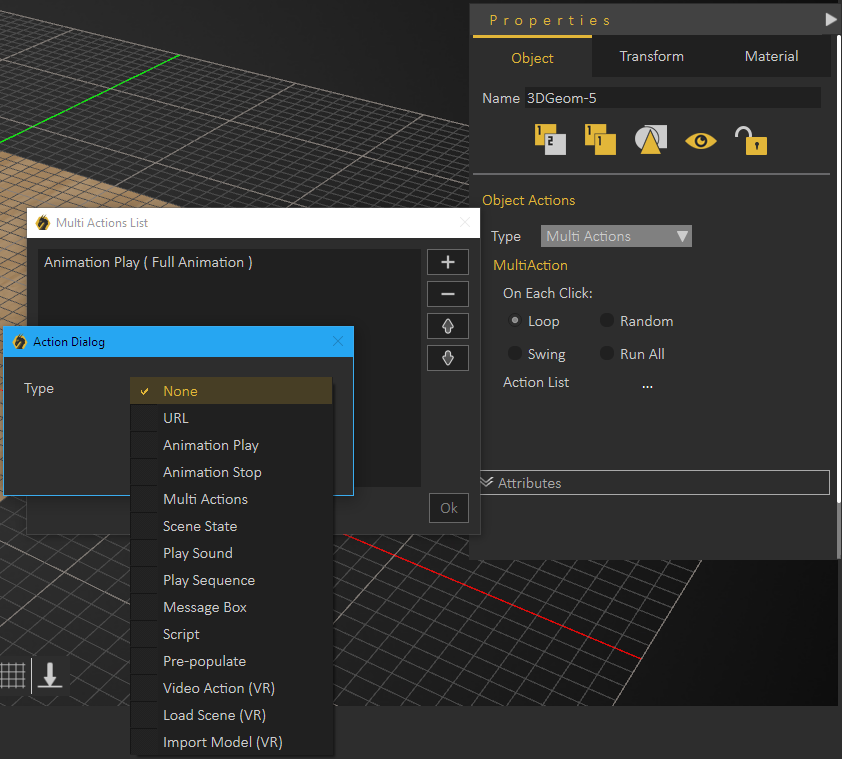

If the Multi Actions option is selected, clicking the '...' button will open the Multi Actions List dialog. By clicking the ‘+’ button the user can enter a list of actions of different types. The order of these actions can also be changed using the up and down arrows. These actions will be executed upon clicking the selected 3D geometry, and they can also be applied in 3D PDF templates.
Supported ways of applying the actions list are:
Loop; runs the action's list upon click in order, then from start again. That is action_1, 2,3 …, then 1, 2, 3.
Swing; runs the action's list upon click in order, then backwards again. That is action_1, 2,3 … then 3, 2, 1.
Random; runs the action's list upon click randomly.
Run All; runs the action's list upon click in order one time.
