Quick Access Toolbar

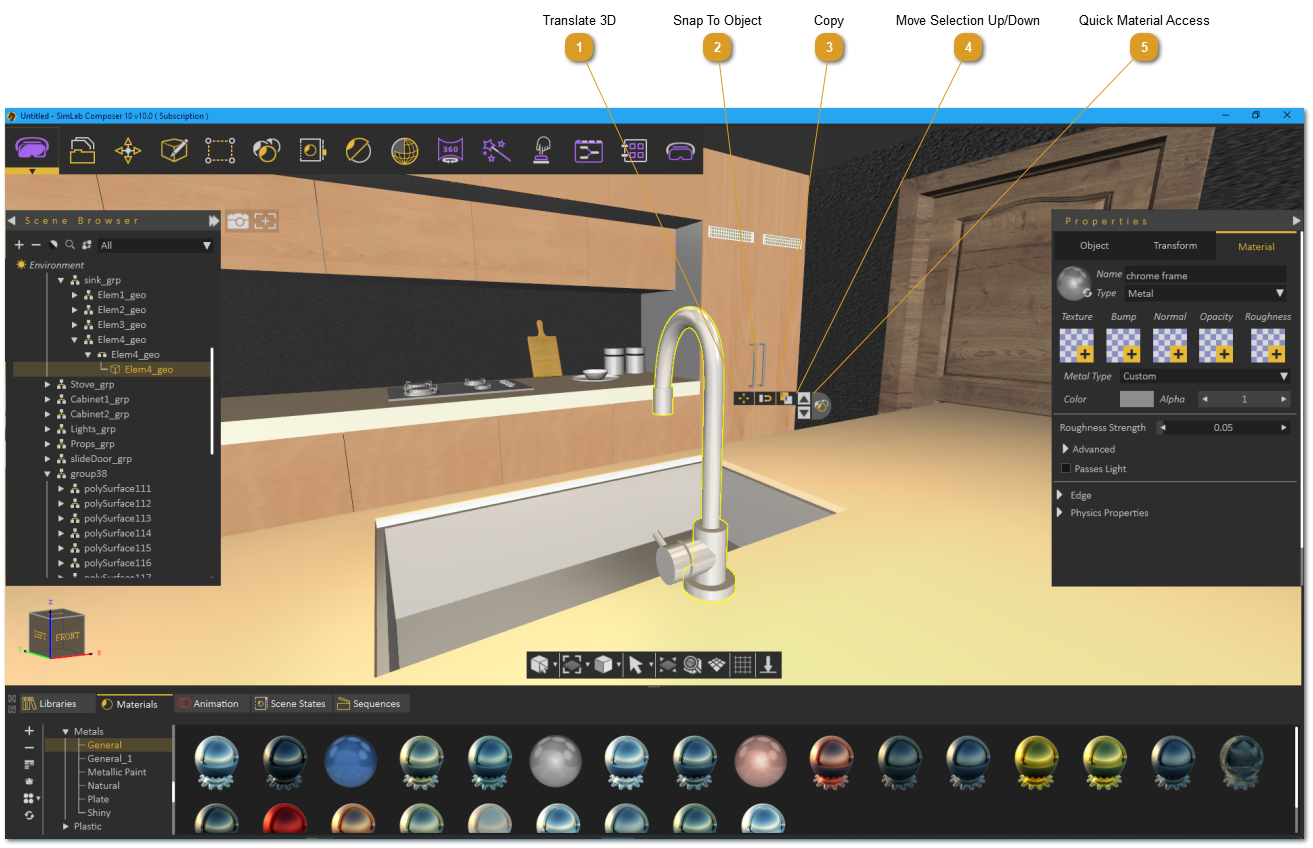

When 3D geometry is selected in the 3D area, the Quick Access Toolbar will appear, with a set of handy functions.

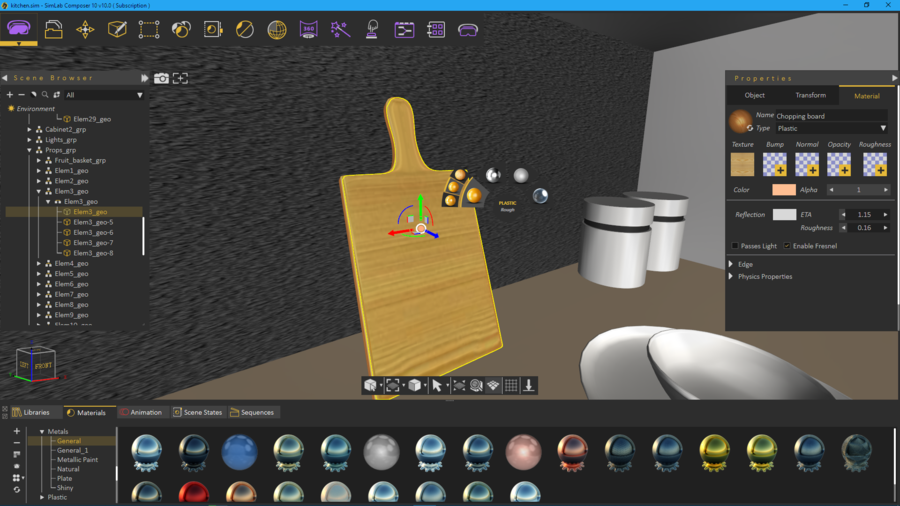

Translate 3D is the first button to the left, in this toolbar, that when selected a 3D axes will appear on the selected 3D geometry along with a spin box. The user can input values in this spin  box, or use its spin arrows.
Snap To Object is another function, allowing the user to snap a selected object to another.
Copy; function will create a copy of the selected object. Please refer to the next section for more about Objects Fast Copy.
The move selection up/down will move the selection along the object up/down from the selected object.





The last button gives the user quick access to adjust materials appearance. This function does not create new materials, it will change the properties of the selected object's material, to give it more realistic look.
