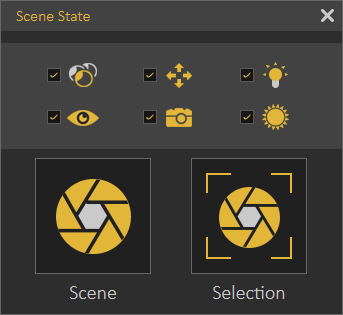

Enables the user to capture different configurations for the selected 3D model(s), or for the whole scene. The User can check the properties to include in a scene state, from the availabel properties in the Scene State dialog shown below, which appears when the Capture option is selected.
SimLab Composer’s Scene States are smart in capturing attributes; they can include any combination of the listed attributes. This can be helpful in creating scene states for models with different attributes, and setups.
With the properties checked, the user needs to click the Capture option, to be either from Scene or from Selection. The first option will capture a scene state for the whole scene with the properties checked. The From Selection capture option captures a scene state for the selected model(s), with the checked properties. Depending on the checked properties, the generated scene state will be added to the corresponding tab(s) in the Scene States library.
Manage
Opens Manage Scene States Groups dialog box, where the user can create new group, remove, rename. or reorder groups.
