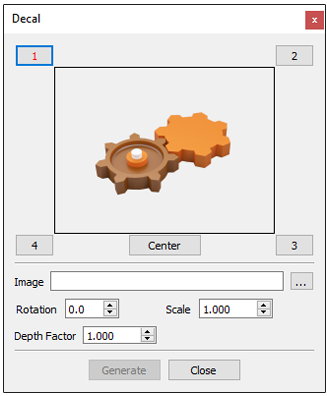

Applying a company Logo, or product images to 3D models is made easier with create Decal. Clicking this function will open the Decal window. The parameters in this window are;
Image: requires setting a valid path for a valid image file.
Rotation: is the rotation angle, in degrees, to be applied to the decal image.
Scale: is a uniform scale value to be applied to the decal image.
Depth Factor: is the depth value for applying another image of the decal, in case of applying the decal on more than one geometry.
After selecting an image, the user needs to pick four points, and a center to set the image location.
To learn more about decal creation, check SimLab Composer tutorials at: https://www.youtube.com/watch?v=7U8Dh6H9K-Y.
