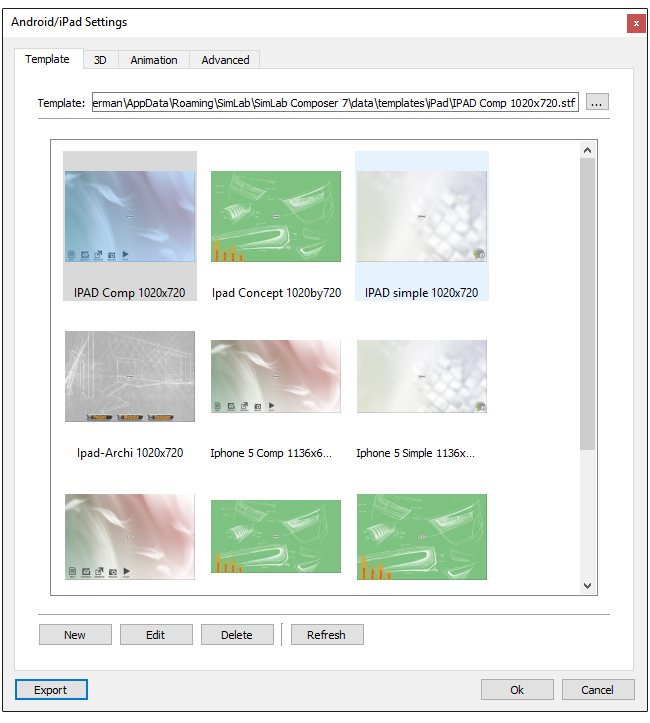

Template tab is where the user can browse to the folder containing the iPad/Android template(s) to use, create New templates, Edit, Delete, or Refresh template(s).
Clicking the New button will open SimLab Designer window. SimLab Designer is a simple application that enables users to design and save their own templates. To learn more about SimLab Designer, click the Help combo-box in the Setting/Help bar, and select Designer Help.

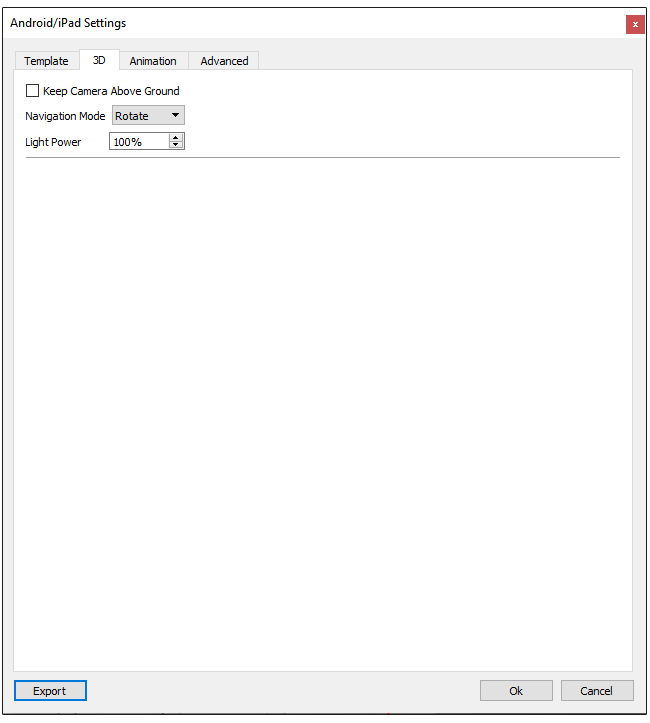

3D Tab
In this tab the user can set the properties of the 3D Area in the template.
The ‘Keep Camera above Ground’ option allows architects to prevent viewers of their 3D models from viewing under the buildings.
The user can also select the navigation mode in the exported (*.zim) file. Spin navigation mode adds great navigation experience.
In the Light Power spin box, the user can increase/decrease the light power in the generated template and thus in the exported (*.zim) file.
Animation Tab
For scenes that include animation, checking the Show Time Line option will display the time line on top of the template.

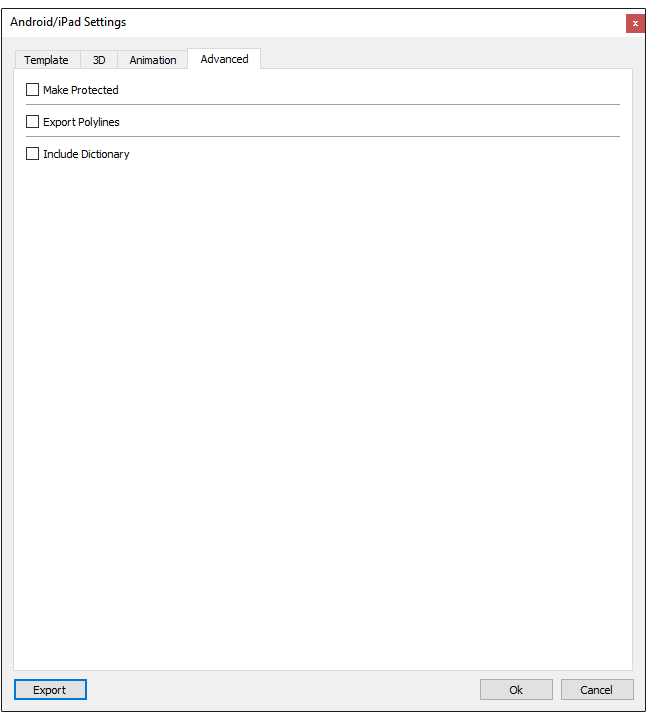

Advanced Tab
In this tab, and by checking the Make Protected option, the exported (*.zim) file will only be viewable using SimLab CAD Viewer. The file will not be readable by SimLab Composer, and thus the 3D models included in the file are protected.
The Export Polylines option, when checked, enables exporting polylines included in the 3D scene.
Checking the option Include Dictionary will make the current values set in the dictionary to be saved in the generated zim file.
