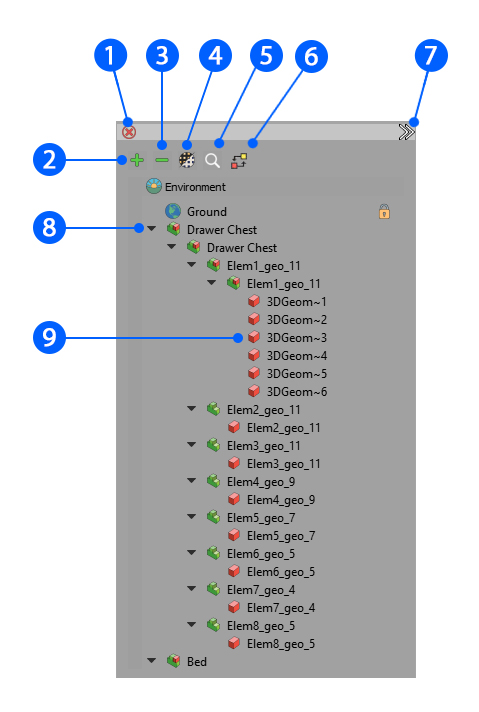

On the left side of SimLab Composer, you can find the objects tree, the tree displays and arrange all the elements in your scene, including, geometries, lights and cameras to name a few.
1
Collapse Tree
2
Expand all objects from parents
3
Collapse all objects from parents
4
Switch font color black/white
5
Search for Objects by name
6
Align Object
7
Resize the object tree
8
Parent
9
Object
You can adjust the size and the location of the tree easily, as well as choosing whither to hide it or not.

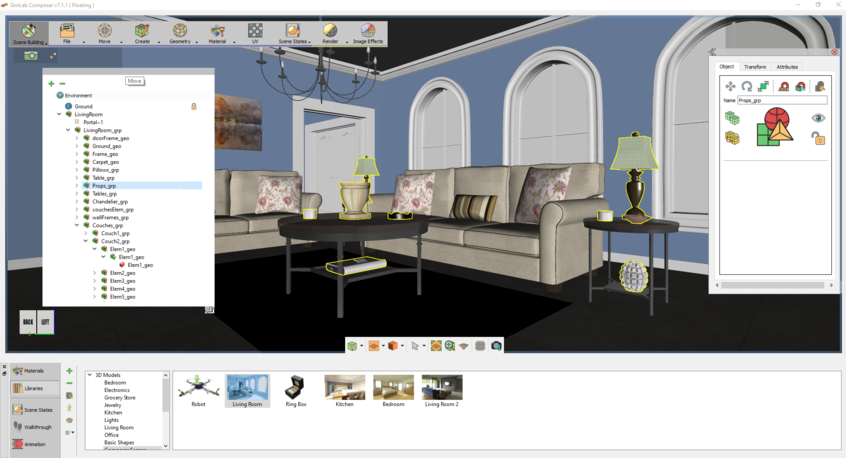

Selecting an object will display the attributes box that contains all the properties for the selected object, through this panel you can perform several basic operations on the object,
among which, are: translate, rotate, isolate and copy, In Composer 9, user can search for objects by name.
Sometimes this Object Tree displays application specific functions, like Render Settings, when the Rendering workbench is selected.
